Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation

Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation

Fast-Curing Epoxy Resin

1000 - 2500mPa.s Viscosity Casting Epoxy Resin

1.16 - 1.20g/cm3 Density APG Epoxy Resin

Plaats van herkomst:

CHINA

Merknaam:

wenyou

Certificering:

ISO9001, ISO14001, SGS, and UL

Modelnummer:

8517

Contacteer ons
Verzoek om een Citaat
Productdetails
Classificatie:
Kleefstoffen met dubbele componenten
Gebruik:
Isolatoren, transformatoren en andere isolatieproducten
Sollicitatie:
Elektrische isolatoren voor buitenvoorzieningen voor toepassingen met middel- en hoge spanning
Uiterlijk van epoxyhars:
Lichtgele Transparante Kleverige Vloeistof
Viscositeit bij 25°C:
1000 - 2500 mPa.s.
Dichtheid bij 25°C:
1.16 - 1,20 g/cm3
Dampdruk bij 25°C:
< 0,01Pa
Flitspunt:
Rond 135°C
beschrijving:
Flexibel gegoten epoxyhars voor transformator spoel inkapseling - aanpasbaar aan verschillende omsta
Epoxywaarde:
4.5 - 5,0Eq/kg
Betaling & het Verschepen Termijnen
Min. bestelaantal
20 kg/emmer als monster
Prijs
Onderhandelbaar
Verpakking Details

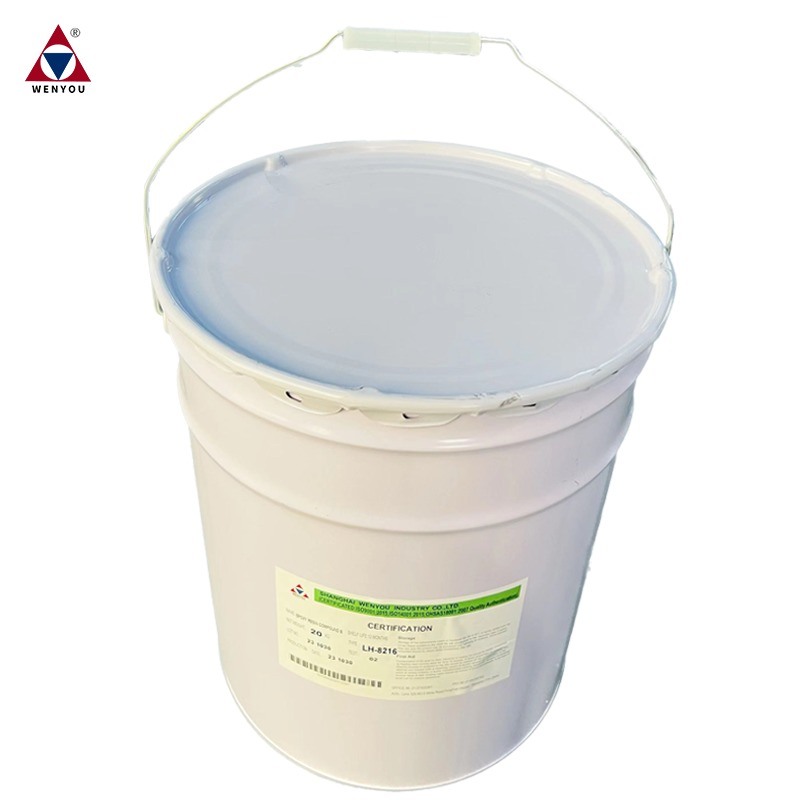

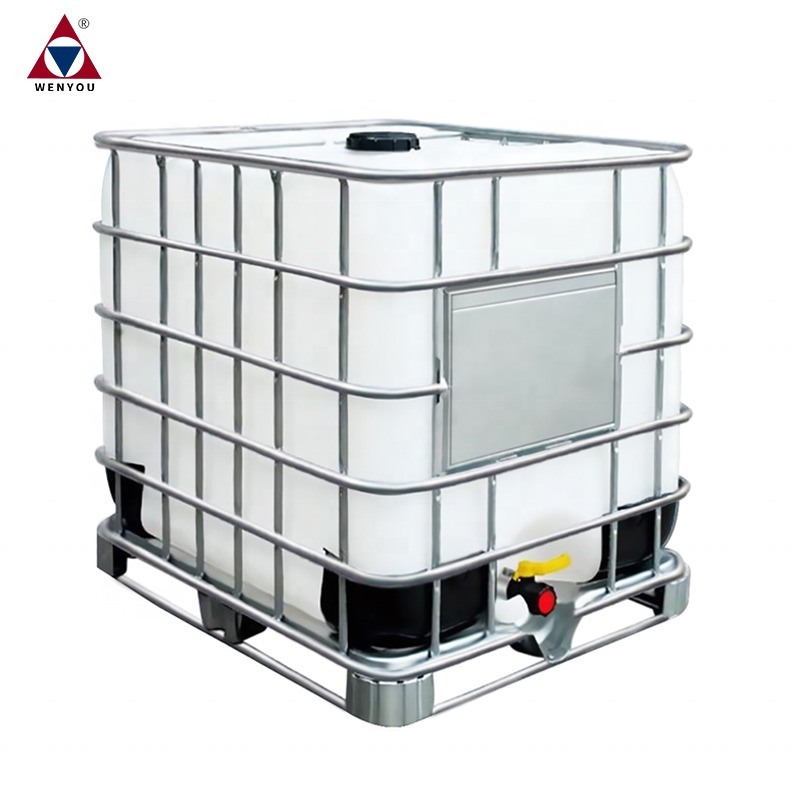

20 kg/emmer, 220 kg/vat, 1200 kg/tank
Levertijd
7 tot 10 werkdagen
Betalingscondities
Normaal gesproken T/T, L/C
Levering vermogen
Er is veel grondstof op voorraad.
Productomschrijving
Fast-Curing APG Epoxy Resin | Flame Retardant for Electrical Parts
Flexible Casting Epoxy Resin for Transformer Coil Encapsulation
Our flexible casting epoxy resin is specifically engineered for transformer coil encapsulation, designed to withstand various mechanical and thermal stresses during operation while maintaining excellent electrical insulation properties.
Key Benefits
  • Adapts to thermal expansion and contraction without cracking or delamination
  • Absorbs mechanical vibrations to protect transformer coils
  • Maintains excellent electrical insulation properties
  • Provides optimal balance between flexibility and structural strength
  • Ensures long-term integrity of transformer encapsulation
Product Introduction
LE-8517 is a modified saturated cyclic aliphatic epoxy resin system, combined with LH-8517, a modified weather-resistant anhydride hardener. This fast-curing epoxy is ideal for electronic insulators and suitable for vacuum casting.
Applications
Designed for outdoor use in medium and high voltage electrical components including:

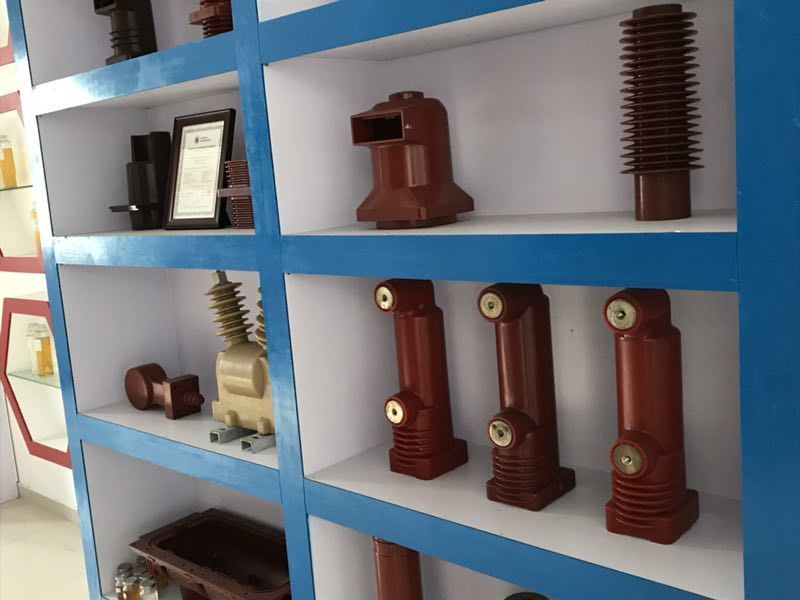

  • Electrical insulators
  • Transformers
  • Various insulation components
Processing Methods
Available processing options include:
  • Conventional gravity casting method under vacuum
  • Automatic Pressure Gelation (APG) process
Production methods can be customized to accommodate existing manufacturing techniques.
Material Properties
This two-component system features:
  • Saturated cyclic epoxy resin without pre-mixed fillers
  • Remains liquid at room temperature
  • Excellent UV resistance
  • Outstanding thermal shock resistance
  • Superior environmental stability
  • Exceptional mechanical and dielectric properties
Formulation
Component Material Quantity
Epoxy resin LE-8517 100 pbw
Hardener LH-8517 100 pbw
Filler Silica powder 300-360 pbw
Color paste LC series 3 pbw
Product Images
Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 0
Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 1
Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 2
Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 3
