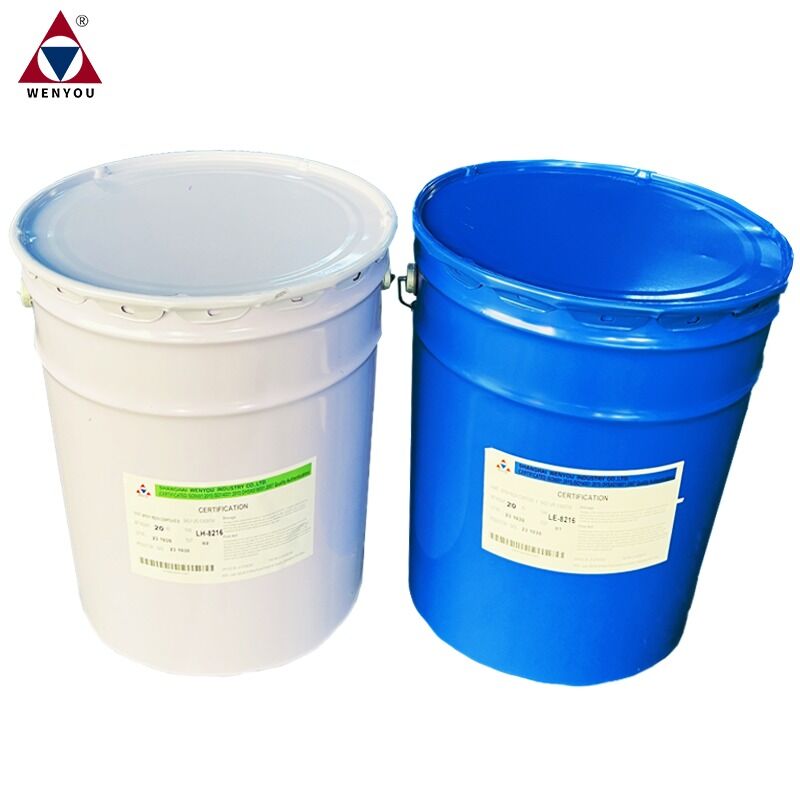

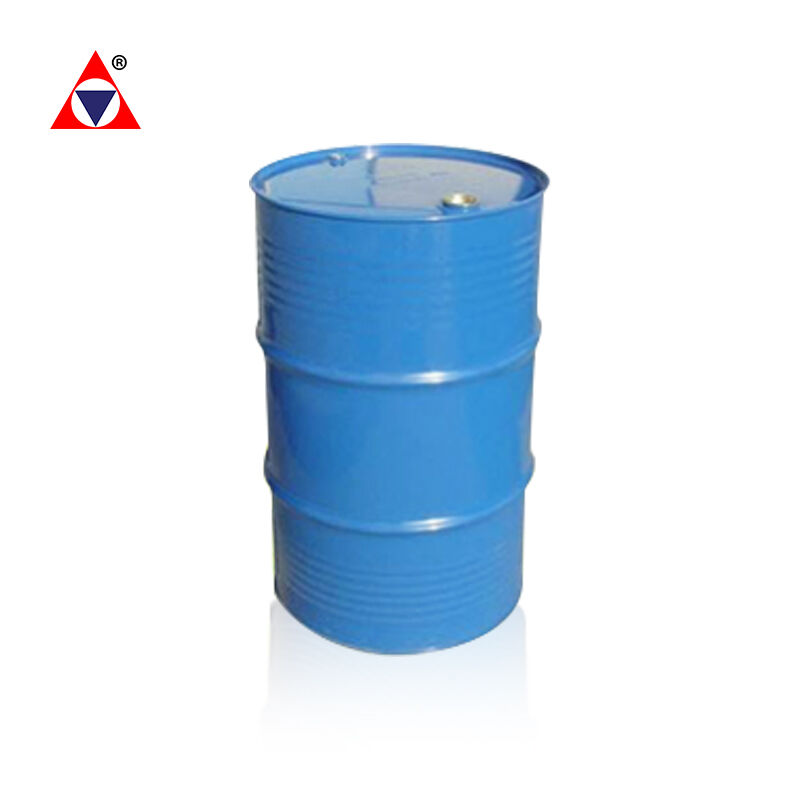

Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting

Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting

heat resistant epoxy resin

electrical insulation epoxy

liquid casting epoxy resin

Plaats van herkomst:

Shanghai, China

Merknaam:

wenyou

Modelnummer:

9217F

Contacteer ons
Verzoek om een Citaat
Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting
Productdetails
CAS Nr.:
1675-54-3
Classificatie:
Kleefstoffen met dubbele componenten
Einecs Nee.:
216-823-5
Hoofdgrondstoffen:
EPOXY
MF:
C21H24O4
Andere namen:
epoxyhars pottenverbinding
Type:
Vloeistof
Gebruik:
elektrische isolatie en transformator
Kleur:
licht geel
Betaling & het Verschepen Termijnen
Min. bestelaantal
50
Verwante producten
Goede prijs High Dielectric Strength Epoxy Resin with Thermal Stability and Chemical Corrosion Resistance for Electrical Insulation online

High Dielectric Strength Epoxy Resin with Thermal Stability and Chemical Corrosion Resistance for Electrical Insulation

Krijg Beste Prijs
Goede prijs Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation online

Thermal Stable Low Water Absorption HB Class Curing Epoxy Resin Compound for Electrical Insulation

Krijg Beste Prijs
Goede prijs Hot-Curing Epoxy Resin with Viscosity 0.4-0.8 and Density 1.17-1.24 for Medium & High Voltage Transformers online

Hot-Curing Epoxy Resin with Viscosity 0.4-0.8 and Density 1.17-1.24 for Medium & High Voltage Transformers

Krijg Beste Prijs
Goede prijs Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation online

Epoxy Resin Compound with 1:1 Mixing Ratio High Tensile Strength and Thermal Conductivity for Electrical Insulation

Krijg Beste Prijs
Contacteer ons
0086 18916511816
hope.lu@sh-wysy.com
86-21-64308192
Contact nu
Productomschrijving
Product Description

Property
Bi-component Epoxy resin system /Liquid can be processes of APG&Conventional casting process undervacuum.Excellent splitting resistance &heat resistance TG:90-110℃.

Formulation:

Epoxy resin
LE-9217F
100pbw
Hardener
LH-9217F
100pbw
Filling
Silica flour(SIO2)
300-380pbw
Color paste
LC-series
3pbw
Process Condition
Processing parameters
Vacuum casting
Epoxy resin / hardener mixture temperature
Premix 70°C/2h + final mix 15-30mins
Feeding process
100℃/8h
Mold temperature
105℃/4-6h
Gelation time
80℃/6h+90℃/4h +100℃/2h+120℃/2h
Post cure
130℃×10h
Mechanical and physical properties
Properties
Value
Properties
Value
Tg（DSC）
75-95℃
Thermal conductivity
0.8-0.9W / mk
Tensile strength
65-85N/mm2
Thermal decomposition
＞320℃
Flexural strength
100-140N/ mm2
Water absorption
(23℃×10days)
0.10-0.20 % by wt.
Compressive strength
140-180N/ mm2
Water absorption (100℃×60 mins)
0.08-0.15 % by wt.
Impact strength
9-16kJ/ m2
Surface resistivity
1014Ω
Curing shrinkage
0.8-1.0%
Volume resistivity
1015Ω.cm
Flammability（4mm）
HB Class
Dielectric strength
30 kV / mm
Flammability（12mm）
HB Class
Loss factor
0.02
Gelation times
Temperature
Gelation time
at 120℃
24-40mins
at 140℃
12-20mins
at 160℃
6-10mins
Producing Process

Application process recommendation

 1. Preparation of ingredients

1.1 The casting mold should be preheated in the oven at 100-110 ° C for more than 10 hours, and above 4000kva transformer coil
shall be given a longer preheating time,
To ensure that the coil is completely dry and its temperature is not less than 80 ° C when installed.
1.2 The silica powder shall be sealed to normal temperature for more than 6 hours in an oven at 110-120 ° C.

2. Ingredients

2.1 Static mixture degassing
2.1.1 Premixing
Material A (epoxy) is based on weight ratio, resin: filler: color paste 100:(125-color paste amount)：proper amount, and mixed
separately after adding resin, filler and color paste,
The temperature is 65-70 ℃, stirring and degassing for no less than 2 hours, and 100 < p < 200pa.
Material B (curing agent) is based on the weight ratio, curing agent: filler 100:125, mixed separately, temperature is 65-70 ℃,
stirring and degassing are not less than 2 hours, 100 < p < 200pa.
2.1.2 Final mixing
Then the components A and B are finally mixed， the accelerator agent is not needed, and put material A and B are mixed in the
proportion of 100:100 into (or vacuum suction) final mixing tank, and in order to stir well, we advise put the resin and hardener
at same or alternate time
2.1.3 Start stirring after feeding,make sure the the spiral lifter can lift the mixture onto the umbrella degassing hood at its
rotate speed
2.1.4 After stirring for 15 minutes, start the vacuum pump for degassing. The vacuum degree shall not be less than 300pa
2.1.5 The mixing degassing time is about 15-30 minutes, and the degassing is completed when there is no bubble on the umbrella
surface

3. Casting


3.1 Set the casting tank temperature at 80-85 ℃, preheating shall start 4-5 hours before batching, and to ensure that the
temperature of the mold during installation is not less than 80 ° C

3.2 After batching, the dried and preheated mold is pushed into the casting tank for vacuum treatment

3.3 The space temperature of the casting tank is 80-85 ° C, the vacuum degree is not less than 300pa, and the vacuum treatment
time is not less than 2 hours

3.4 , The feeding should not be too fast during casting. It can be stopped for 10-15 minutes, and the vacuum can be continued for
20-30 minutes after the material is full. If possible, it can be pressurized by 0.2-0.3mpa after vacuum treatment

3.5 The final mixing casting shall be completed within 90 minutes. Please strictly control the temperature and time to prevent
tank solidification. The excess single component resin and curing agent can be stored for several days, but it must be sealed and
the temperature should be well controlled.
Storage

The components have to be stored in tightly sealed and dry original containers in an
environment at 6~35℃;. Under these conditions, the shelf life will correspond to the expiration date stated on the label (
normally 12 months). After this date, the product may be reanalyzed to confirm if it validates yet. Partial emptied containers
should be closed tightly immediately after use.
First Aid

Emergency case

Contamination of eyes by resin, hardener of casting mix should be treated immediately by
flushing with clean,running water for 10 to 15minutes, a doctor should then be consulted.
Material smeared or splashed on the skin should be dabbed off, and the contaminated area then washed and treated with a cleaning
cream. A doctor should be on the event of severe imitation of burns. Contaminated clothing should be changed immediately. Anyone
taken ill after inhaling vapors should be moved out of doors immediately,in all case of doubt call for medical assistance.
Product Paramenters
Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting 0

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting 2

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Properties
Unit
Value
Unit
Value
Appearance
Visual
Transparent viscous liquid
Visual
Light yellow- yellowish liquid
Viscosity at 25℃
mPa.s
7500-12000
mPa.s
300-600
Density at 25℃
g/cm3
1.16-1.20
g/cm3
1.17-1.24
Vapour Pressure at 25℃
Pa
﹤0.01
Pa
about 0.5
Flash point
℃
about 135
℃
about 140
Mechanical and physical properties
Properties
Value
Properties
Value
Tg（DSC）
75-95℃
Thermal conductivity
0.8-0.9W / mk
Tensile strength
65-85N/mm2
Thermal decomposition
＞320℃
Flexural strength
100-140N/ mm2
Water absorption
(23℃×10days)
0.10-0.20 % by wt.
Compressive strength
140-180N/ mm2
Water absorption (100℃×60 mins)
0.08-0.15 % by wt.
Impact strength
9-16kJ/ m2
Surface resistivity
1014Ω
Curing shrinkage
0.8-1.0%
Volume resistivity
1015Ω.cm
Flammability（4mm）
HB Class
Dielectric strength
30 kV / mm
Flammability（12mm）
HB Class
Loss factor
0.02
Producing Process
Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting 4

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting 6

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting 8

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Applications
Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting 10

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting 12

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting 14

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Casting Process
Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting 16
Company profiles
Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting 18
Our company
Shanghai Wenyou Industry Co., Ltd. is a professional epoxy resin company in
Fengxian,Shanghai, China, specializing in the manufacturing, R&D, and sales of epoxy resin, curing agents, and related products.
Our wide range of products includes epoxy resin, flame retardant resin, curing agents, outdoor modifiers, toughening agents, epoxy
paste, demoulding agents, and fillers. Our high-quality products are used in high voltage electrical insulation applications and
are exported globally. We are committed to providing stable products and excellent service to the global electricity industry.
Exhibition
Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting 20
Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting 22
Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting 24
Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting 26
Certifications
Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting 28
Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting 30
Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting 32
Bi-component Heat Resistant Epoxy Resin with Excellent Splitting Resistance for Electrical Insulation and Liquid Casting 34
