High-Temperature Transformer Epoxy Resin with V1 Flammability H-Class Thermal Endurance and Pre-Mixed Fillers for APG Casting

high-temperature epoxy resin for electrical insulation

epoxy resin system for APG casting

transformer epoxy resin with vacuum casting

Plaats van herkomst:

China

Merknaam:

WENYOU

Certificering:

ISO/REACH/RoHS/SGS/UL

Modelnummer:

LW-8229A/LW-8229B

Contacteer ons

Verzoek om een Citaat

Productdetails

Afbraaksterkte:

≥25 kV/mm

Het volgen weerstand:

≥600 V

Diëlektrische constante:

3.0-4.0 (50 Hz)

Ontvlambaarheid:

V1 (UL94)

Betaling & het Verschepen Termijnen

Min. bestelaantal

20 kg/emmer als monster

Prijs

Onderhandelbaar

Verpakking Details

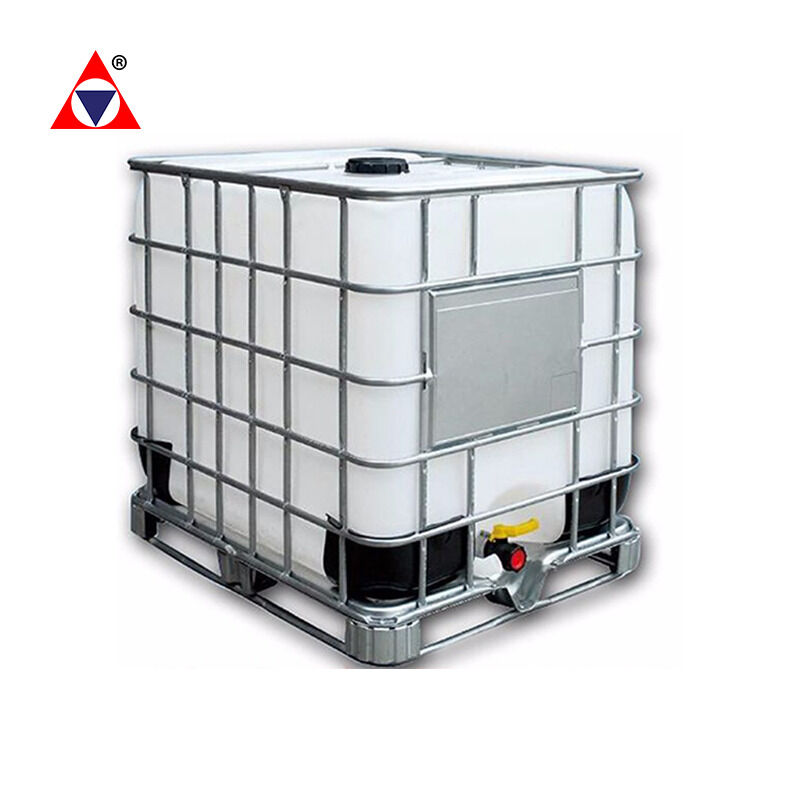

20 kg/emmer, 220 kg/vat, 1200 kg/tank

Levertijd

7 tot 10 werkdagen

Betalingscondities

L/C, T/T, Western Union, MoneyGram

Levering vermogen

Er is veel grondstof op voorraad.

Verwante producten

Video

Vibratiebestendige, buitenbestendige, scheurbestendige transformator, epoxyhars voor CT/VT-potting

Krijg Beste Prijs

Langdurig anti-tracking en UV-bescherming epoxy voor CT/PT-eenheden Premium elektrisch afdichtmiddel voor lijm & CT/PT-eenheden

Krijg Beste Prijs

Thermisch geleidende epoxyhars voor transformatoren en doorvoeringen

Krijg Beste Prijs

Video

Vibratiebestendige RT Cure Potting Compound voor de bescherming van gevoelige CT/PT spoelen

Krijg Beste Prijs

Contacteer ons

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

Contact nu

Productomschrijving

Pre-Filled Epoxy System | V1 Flammability | HV Insulation (10-35kV) | APG/Vacuum Casting

Product Attributes

Attribute	Value
Breakdown Strength	≥25 kV/mm
Tracking Resistance	≥600 V
Dielectric Constant	3.0-4.0 (50Hz)
Flammability	V1 (UL94)

Product Description

The LW-8229A/LW-8229B is a pre-mixed, filler-loaded epoxy system designed for medium/high-voltage insulation (10-35kV). Combining modified BPA epoxy (LW-8229A) and anhydride hardener (LW-8229B) with integrated fillers, it delivers superior crack resistance, V1 flammability rating (UL94), and H-class thermal endurance (180°C). Optimized for vacuum casting and APG processes in transformers, CTs, and terminal posts.

Key Features & Advantages

Feature	Advantage
Pre-Mixed Fillers	Simplified processing, consistent dispersion
V1 Flammability Rating	Enhanced fire safety for critical electrical components
Thermal Class H (IEC 60085)	Stable performance up to 180°C
APG & Vacuum Casting Ready	Flexible production integration
High Arc Resistance	181-198 sec (IEC 61621)
Low Water Absorption	0.10-0.20% (23°C/10d)
Dual-Process Compatibility	Adapts to APG or vacuum workflows

Applications

Ideal for sealed electrical insulation:

10-35kV terminal posts & bushings
Dry-type transformers & current transformers
Switchgear insulation components
HV sensor encapsulation
Grid protection devices

Key Performance Data

Cured system: LW-8229A/LW-8229B = 100:100 | Cure: 140°C*4h + 150°C*12h

Mechanical & Thermal Properties

Property	Value	Standard
Flexural Strength	90-130 MPa	ISO 178
Tensile Strength	55-85 MPa	ISO 527
Impact Strength	8-15 kJ/m²	ISO 179
Glass Transition (Tg)	105-120°C	ISO 11357-2
Thermal Conductivity	0.8-0.9 W/m*K	ISO 8894-1
Decomposition Temp	>320°C	ASTM E2402

Electrical & Safety Properties

Property	Value	Standard
Breakdown Strength	≥25 kV/mm	IEC 60243-1
Volume Resistivity	10¹⁵ Ω*cm	IEC 62631-3-1
Tracking Resistance	≥600 V	IEC 60112
Dielectric Constant	3.0-4.0 (50Hz)	IEC 60250
Flammability	V1 (UL94)	UL94/GB/T2408
Hydrophobicity	HC1 Class	IEC 62073

Frequently Asked Questions (FAQ)

Q1: Are fillers pre-mixed in this system?

A: Yes! Both LW-8229A (resin) and LW-8229B (hardener) contain pre-dispersed fillers, ensuring uniform properties and reduced mixing complexity.

Q2: What curing cycle is recommended?

A: For vacuum casting:
Cure: 75°C/4-5h → 95°C/2h → 115°C/4-6h → Post-cure 150°C/12h
For APG: Post-cure 130-150°C/10-12h after molding.

Q3: Why choose V1 flammability over HB?

A: V1 rating offers superior fire resistance for high-risk applications like transformers and terminal posts, meeting stricter safety standards.

Q4: Is silica filler adjustable?

A: Fillers are pre-loaded. For custom ratios, contact Shanghai Wenyou for tailored solutions.
